Corner Mounted Hanging Bars | CHB

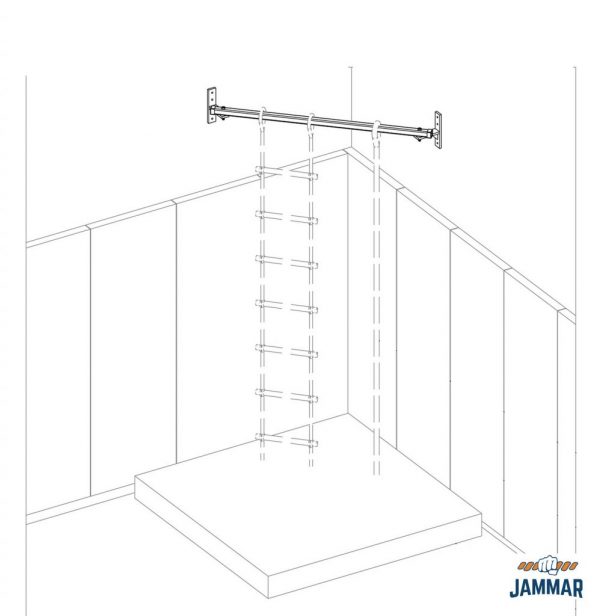

Description The Corner Mounted Hanging Bars (CHB) Series is a simple method for attaching climbing ropes, ladders, or cargo nets for younger, beginner level climbers. The CHB series mounts directly in the corner of a structural wall with a recommended attachment height of 8′ above the finished floor. The hanging bar assembly attaches to a structural wall utilizing 3/8″ thick heavy duty welded brackets. Each bracket is attached to the wall with three anchors, specified and supplied by others. The support bar is constructed of 1-1/2″ x 1-1/2″ 11 gauge steel and is thru-bolted to the wall brackets using 1/2″ Grade 8 hardware. The CHB Series is 4′ wide and completely customizable with your desired set-up. The number of accessories per hanging bar assembly is determined by the customer. Allow for 18-24″ minimum spacing from accessory to accessory. Climbing cargo nets can be oriented vertically or at an angle. Angled cargo nets are custom and require floor anchors. Custom support bars and custom accessories available upon request. Standard accessories listed below and sold separately. Hanging Bar Options ItemDescription CHB-44' 6" Bar w/ 2 Wall Brackets Climbing Net Options ItemMesh SizeNet Size WPP9-3/4-4X89"4' W x 8' H Climbing Rope Options ItemRope Size Dia.Rope MaterialDescription WCF2-100-M-81"Manila8' x 1" Manila Rope WCF2-100-W-81"Poly Dacron8' x 1" Poly Dacron Rope WCF2-125-M-81.25"Manila8' x 1.25" Manila Rope WCF2-125-W-81.25"Poly Dacron8' x 1.25" Poly Dacron Rope Ladder Options ItemSpacingDescription WRL12-812"8' Long, All-Purpose Rope Ladder View and download: Corner Mounted Hanging Bars | Product Specifications Installation & Maintenance Manual | CHB Series Indoor nets are supplied with general installation instructions, care and use documentation. Any and all climbing activities require proper mats, spotting and supervision when using. Specific soft landing surfaces and supervision required and possible belaying for climbing heights over 8 feet. Mats are probably the single most important ingredient to any activity using equipment to prevent serious injuries when accidents may occur. Having several thick landing mats placed around nets will make instruction much easier and more innovative. These mats are versatile and can be used in many capacities. Sizes are for pricing purposes only and all nets are custom made and non returnable. Custom sizes available. Click here to learn more
