WL 724 KIT Wireless Tension Link Load Cell with Indicator

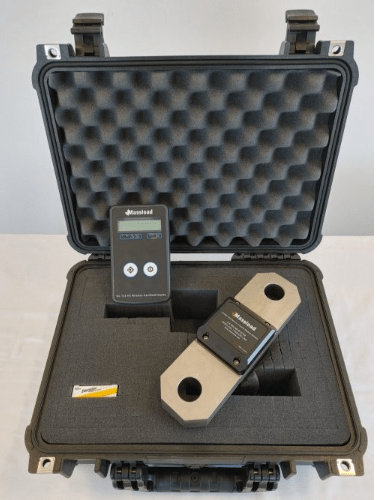

Description WL 724 KIT is a wireless tension link load cell with handheld display with a range up to 800 meters line of sight.  The WL 724 KIT includes an industrial carry / shipping case to house the load cell and display. This system is designed for cranes, hoists, bollard tests, mooring testing, and other tension measurement applications.  The tension link load cell can be used as a wireless crane scale, allowing the operator to be clear from danger and read the weight reading using the handheld display. We can customize capacities, and also manufacture the load cell from 17-4 stainless steel if required. We have many receiver options not only the T24-HS single channel tension link load cell display.  The T24-HA display will allow the operator to view up to 12 tension links and also the sum of the load if desired. Using one of the optional T24 Base Stations allows the load cell data to be viewed and logged using the free T24-LOG-100 software.  This is ideal for tensile tests such as rigging testing, or mooring tests requiring a record of the forces applied to the load cell. Wireless Tension Link Load Cell Features: Standard Capacities: 10K, 25K, 50K, 75K, 100K, 150K, 250K lbs Safe overload: 200% capacity Ultimate overload: 400% capacity (meets ASME 26-6) Accuracy: 0.1% full scale multi-point calibration Protection: IP 67 Operating Temperature: -20°C to 55°C Compensated Operating Temperature: -10°C to 40°C Alloy steel with Electroless Nickel Plating Operates at 2.4 GHz Radio module FCC, CE, IC Approved Battery life of 2 months (2x AA, @8 hours/day use) Long range of up to 800 m (line of sight)   Wireless Handheld Display Features: T24-HS display 1 wireless tension link load LCD readout Sample rate: 3 updates/sec Antenna: Fully enclosed and protected Tare Function Sleep and wake control of wireless tension link load cell Auto shutdown Operating Temperature: -10°C to 50°C Operates at 2.4 GHz Radio module FCC, CE, IC Approved Battery life of 35 hrs (2x AA continuous use) Dimension: 5.98 x 3.54 x 1.33 in (152 x 90 x 34 mm)   Capacity   |  Recommended Crosby Shackles 10,000 lb        G2130-4.75T 25,000 lb        G2130-12T 50,000 lb        G2130-25T 75,000 lb        G2130-35T 100,000 lb      G2140-55T 150,000 lb      G2140-85T 250,000 lb      G2130-120T
